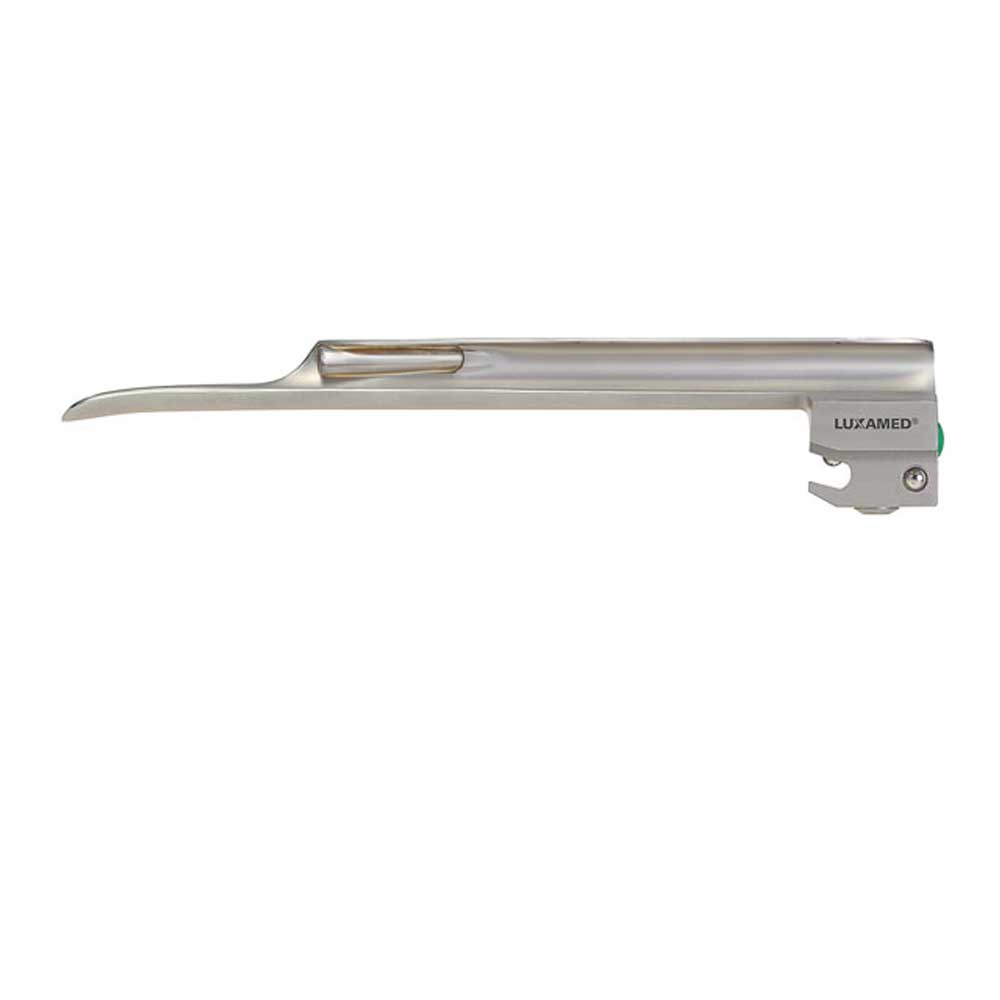

The F.O. Miller blade by Luxamed with integrated light guide uses 5.500 fibres for maximum brightness. It also has a long service life. The diameter of 4 mm ensures optimal illumination. The 3.7 V LED version of this blade has a brightness of approximately 10.500 Lux. The 2.5 V xenon variant reaches circa 4.500 Lux. The blade is made of stainless steel and is compatible with all Luxamed handles in accordance with ISO 7376 (green standard). It is autoclavable up to 134 Degrees Celsius – 4.000 circa cycles. The Miller blade is available in several different sizes.
Properties of the F.O. Miller Blade
- blade for laryngoscopes
- integrated light guide
- diameter 4 mm
- optimal illumination
- long service life
- brightness 2.5 V xenon: circa 4.500 Lux
- brightness 3.7 V LED: circa 10.500 Lux
- stainless steel
- compatible with all Luxamed handles in accordance with ISO 7376 (green standard)
- autoclavable up to 134 Degrees Celsius – approx. 4.000 times
- different sizes available

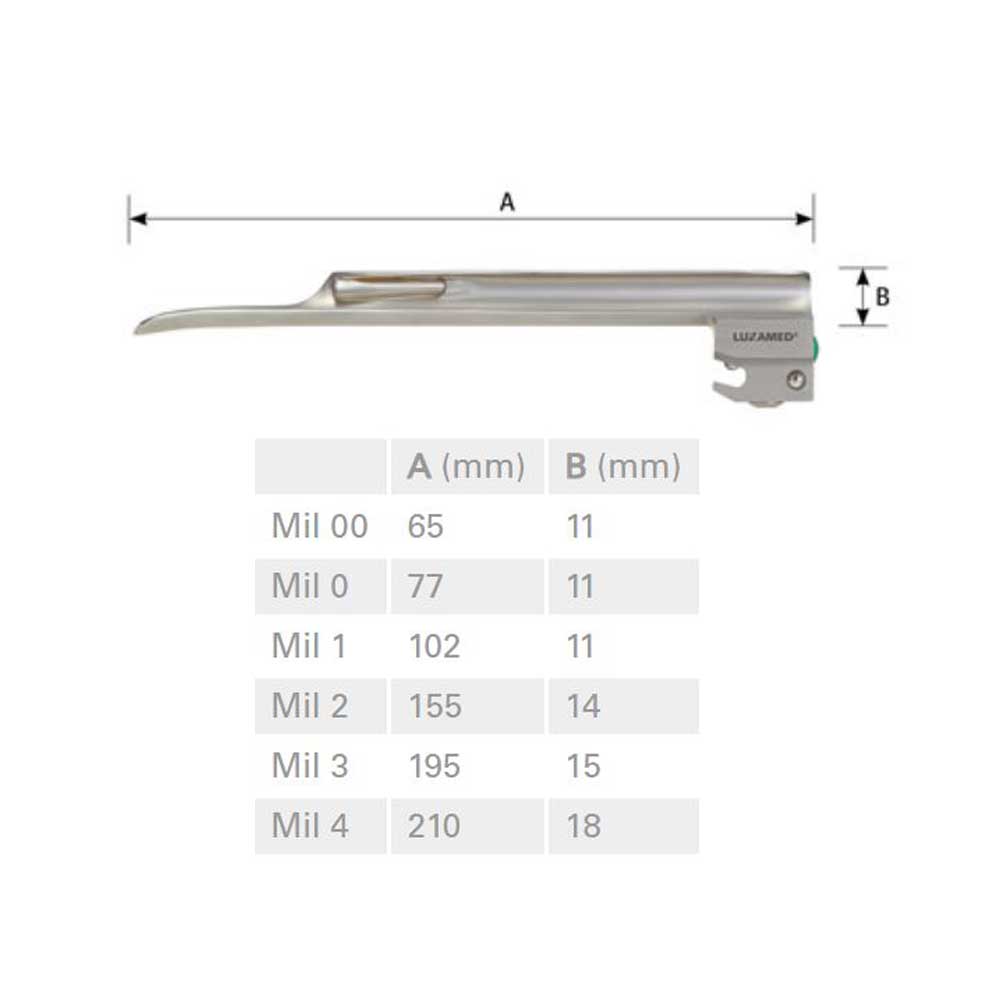

Variants of the F.O. Miller Blade
- Mil 00: length: 65 mm, height: 11 mm
- Mil 0: length: 77 mm, height: 11 mm
- Mil 1: length: 102 mm, height: 11 mm
- Mil 2: length: 155 mm, height: 14 mm
- Mil 3: length: 195 mm, height: 15 mm
- Mil 4: length: 210 mm, height: 18 mm
