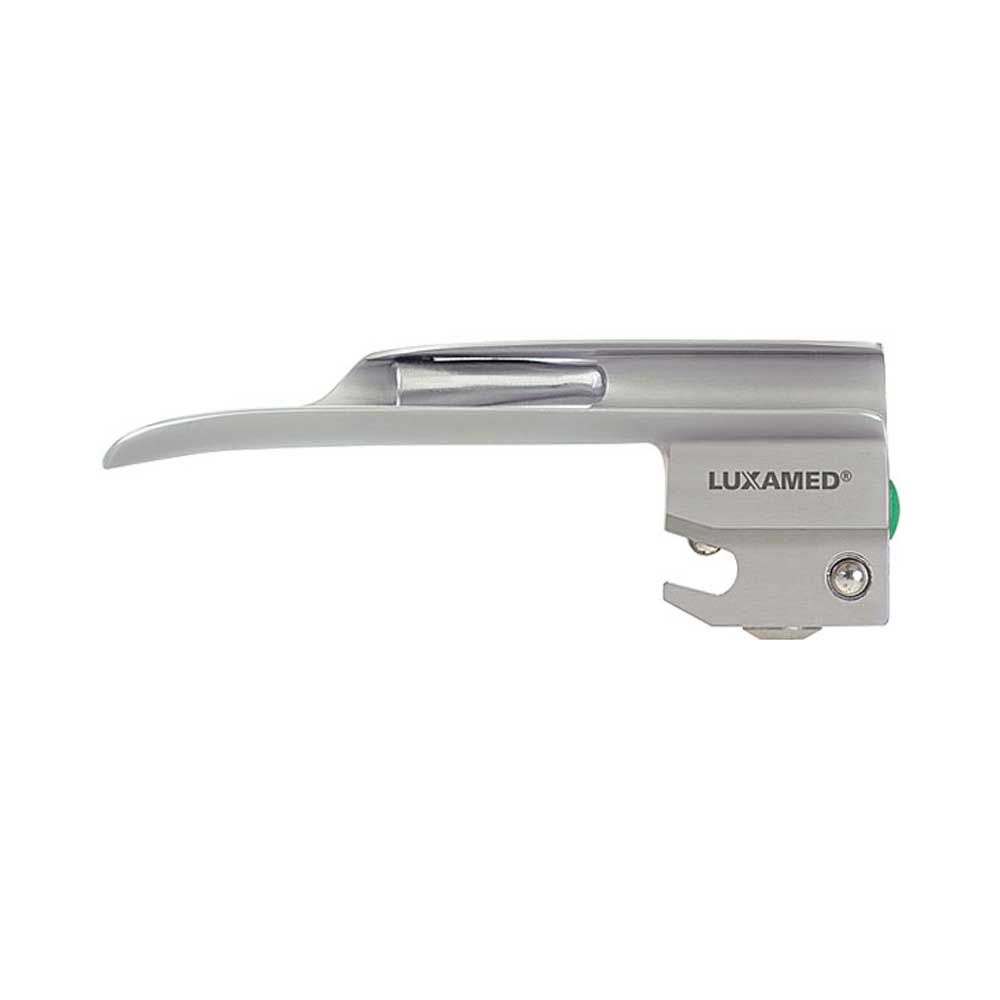

The F.O. Miller blade by Luxamed has a replaceable light guide. 5.500 fibres allow for maximal brightness and a long service life. The diameter of 4 mm provides optimal illumination. The 3.7 V LED version of this blade reaches a brightness of approximately 10.500 Lux. The 2.5 V xenon variant has circa 4.500 Lux. The blade is made of stainless steel and is compatible with all Luxamed handles in accordance with ISO 7376 (green standard). It is autoclavable up to 134 Degrees Celsius – 4.000 circa cycles. The Miller blade is available in several different sizes.
Properties of the F.O. Miller Blade
- blade for laryngoscopes
- replaceable light guide
- diameter 4 mm
- optimal illumination
- long service life
- brightness 2.5 V xenon: circa 4.500 Lux
- brightness 3.7 V LED: circa 10.500 Lux
- stainless steel
- compatible with all Luxamed handles in accordance with ISO 7376 (green standard)
- autoclavable up to 134 Degrees Celsius – approx. 4.000 times
- different sizes available
Variants of the F.O. Miller Blade
- Mil 00: length: 64 mm, height: 11 mm
- Mil 0: length: 74 mm, height: 11 mm
- Mil 1: length: 101 mm, height: 11 mm
- Mil 2: length: 152 mm, height: 13 mm
- Mil 3: length: 194 mm, height: 13 mm
- Mil 4: length: 204 mm, height: 17 mm
